You’ve got your Cheersonic 1/4″ digital torque wrench in hand. You know it’s accurate (±1%) and durable (30,000 cycles). But are you using all of its smart features? Beyond simply displaying a number, your Cheersonic wrench offers three powerful capabilities: Peak Mode, Trace Mode, and Programmable Presets. Mastering these features transforms your wrench from a simple tightening tool into a precision instrument that saves time, prevents errors, and documents your work.

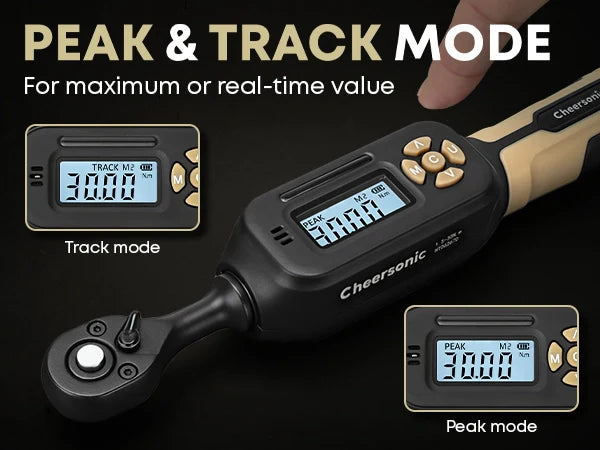

Peak Mode – Capture the Maximum Torque
Peak Mode is a data-capturing feature. Instead of showing a live reading, the wrench remembers and displays the highest torque value reached during your pull. Even after you release the handle and the wrench resets to zero, the peak value stays on the screen.
When to use Peak Mode:
When you can’t see the display while tightening—like when you’re in an awkward position under a vehicle or behind a bicycle frame
When you need to verify the exact torque applied after the fact—tighten, then glance at the screen to confirm you hit the target
When doing repetitive work—you can focus on the fastener, not the display
Example: When tightening a scope ring screw on a rifle, your focus is on the screw head and the alignment, not the display. Using Peak Mode, you can tighten the screw, then look at the screen to confirm you hit the exact in-lb value. No second-guessing.
Trace Mode – Real-Time Feedback
Trace Mode is the standard, real-time measurement mode. When you pull the wrench, the display continuously updates to show the live torque being applied. As you apply more force, the number goes up; when you stop pulling, the number drops back to zero.
When to use Trace Mode:
When you need to see the torque build up in real-time—ideal for delicate fasteners where you want to feel and see the tension increase gradually
When you’re learning a new torque value—you can watch the display and develop a “feel” for the target
When you need to stop at a specific intermediate value—like when a torque sequence requires multiple steps
Example: When tightening a carbon fiber bicycle stem bolt, you want to feel the tension build gradually. Trace Mode lets you monitor the exact moment the fastener starts to take tension, helping you avoid a sudden over-torque.
Programmable Presets – Save Time, Eliminate Errors
If you do the same torque values repeatedly—bicycle stem bolts, scope ring screws, motorcycle drain plugs—reprogramming the wrench every single time is a productivity killer. The Cheersonic allows you to save up to 10 preset torque values and recall them instantly.
Why presets matter:
Save time—no more dialing in values every time
Eliminate input errors—once a preset is saved, it’s always correct
Standardize across operators—everyone uses the same values
Reduce training time—new technicians don’t need to memorize torque specs
Example: A bike shop can program presets for:
Stem bolts: 5 Nm
Saddle clamp: 8 Nm
Disc brake caliper: 6 Nm
Cassette lockring: 30 Nm
Bottom bracket: 40 Nm
With one button press, the technician recalls the correct value and starts working. No manual entry, no mistakes.
Data Storage – Your Quality Record
The Cheersonic stores up to 500 data sets in internal memory. Each record includes the torque value applied, giving you documentation for:
Customer records—prove that every fastener was tightened to spec
Warranty disputes—defend your work with hard data
Internal quality control—track consistency across operators and jobs
Audit readiness—demonstrate compliance with industry standards
The Cheersonic 1/4″ digital torque wrench is more than a precision tool—it’s a smart tool. Peak Mode, Trace Mode, Programmable Presets, and Data Storage work together to make your work faster, more accurate, and more accountable. Unlock its full intelligence, and you’ll wonder how you ever worked without it.
